FUJI & CO.(Piezo Science)




CMOS Logic S628C

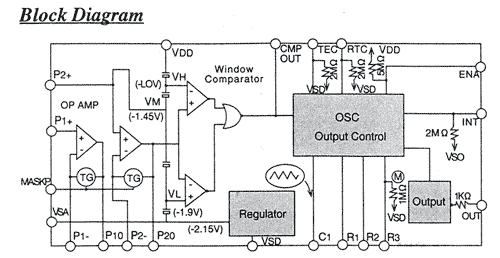

The S628C is a CMOS integrated circuit which contaions two Op-Amps, Window Comparator, Output Control and Time Control.

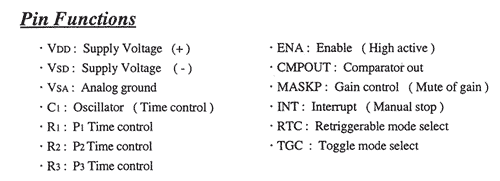

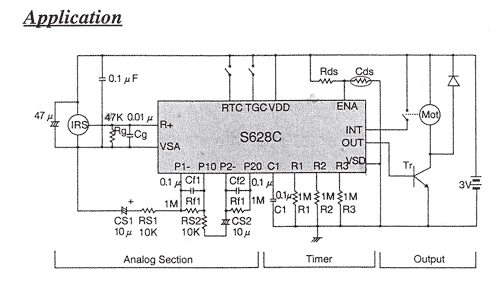

The S628C is the integrated Motion Detection control. It is suitable for application in Automatic Light Switches and Passive Infrared Alarm detectors.

Features:

bulletVery low power consumption (14 µA typ.)
bulletWide supply voltage range (2.6 ~ 5.5 V)
bulletInput for pyroelectric detector, piezoelectric sensor and other small signal sensors.
bulletOutput mode selection
bulletOutput pulse length selection
bulletOperating control (Input for photo-resistive sensor etc.)

Electrical Specifications

Maximum ratings (Ta = 25°C)

Rating Symbol Value Unit
Supply Voltage VDD 5.5 V
Input Voltage VIN VSD to VDD V
Operating Temperature Range TOP -25 ~ 60 °C
Storage Temperature Range TSTG -55 ~ 125 °C

Electrical Characteristics (Ta = 25°C, VDD - VSD = 3.0 V   VDD Common)

Characteristic Symbol Test Condition Min Typ Max Unit
Power Supply Voltage VDD   2.6 3.0 5.5 V
Supply Current IDD Wait 7 14 40 µA
Reference Voltage VSA     -2.1   V
Window Comparator Bias Current ISA     1.25   µA
Window Comparator Center Voltage VM     -1.45   V
Window Comparator Voltage VW (VH - VL)/2   0.4   V
Enable Voltage VTENA     -1.0   V
Output Current IOH Source   -2.0 -1.0 mA
IOL Sink   2.0   mA
Input Offset Voltage VIO       50 mA
Output Voltage VCH IOL = 1µA -0.8     V
VOL IOH = 1µA     -2.8 V
CMPOUT Output Current IMOH       -50 µA
  IMOL   100     µA
Internal Rf Feed Back resistor RFIN MASKP = "H"   200   Kohm
