WIRE TO WIRE, WIRE TO BOARD
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CL07D/E Series | D type wire to wire | E type wire to board |
 |
 |
|
 | Fully waterproof connector of 5.8mm pitch, being applicable to high
current (10A max.) and wide range of wire size. Available in two types
including one for repeating and other for potting substrate. The latter is
provided with a boss serving to prevent reverse insertion. |
| Major applications include baths, toilets, hot-water suppliers, washing
machines, water purifiers, outdoor motors, frozen food showcases, and
construction devices. |
| Conforming to Electrical Apparatus Control regulations. |
Specifications:
| 1 | Poles: | D TYPE | 1,2,3 P |
| E TYPE | 1,2,3 P | ||
| 2 | Pitch: | 5.8mm | |
| 3 | Rated Voltage: | 300V | |
| 4 | Rated Current: | 10A max. | |
| 5 | Withstand Voltage: | 1700V AC 1 minute | |
| 6 | Contact Resistance: | 10 milliohm max. | |
| 7 | Insulation resistance: | 1000 Megohm min. @ 500V DC | |
| 8 | Temperature Range: | -40°C to +105°C | |
| 9 | Waterproof Grade: | JIS C0920, grade 4 Waterproof type by JIS C0920 |
|
| 10 | Applicable Board Thickness: | 1.6mm | |
Materials:
| Housing-Pin Block: | PBT (UL94V-0) | ||||||
| Terminal: | Brass, PB/Tin plating | ||||||
| Wire-Housing Seal: | Silicone Rubber | ||||||
|
|||||||

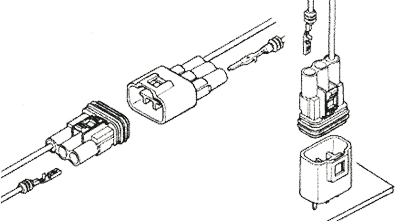

Assembly Layout:
 |
 |

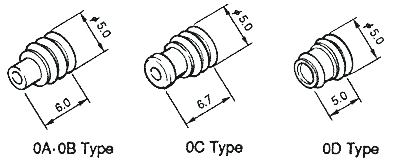

Wire Seal:
| Part No. | Ins. Dia. | Color | Flange | pcs |
| WS07MF-0A | 1.7 - 2.1 | Black | No | 1,000 |
| WS07MF-0B | 2.1 - 2.7 | Blue | No | 1,000 |
| WS07MF-0C | 2.1 - 2.7 | Blue | Yes | 1,000 |
| WS07MF-0D | 2.7 - 3.1 | Brown | Yes | 1,000 |
|
|
||||
Terminals:
| Part No. | Wire Range | Ins. Dia | Pcs/reel | Gender |
| 215001-2M | 0.3 ~ 0.5mm2 AWG 20 - 22 |
2.6 | 4,000X4R | M |
| 215002-2M | 0.3 ~ 0.5mm2 AWG 20 - 22 |
2.6 | 4,000X5R | F |
| 215092-2M | ||||
| 215003-2M | 0.5 ~ 1.25mm2 AWG 16 - 20 |
3.1 | 4,000X4R | M |
| 215093-2M | ||||
| 215004-2M | 0.5 ~ 1.25mm2 AWG 16 - 20 |
3.1 | 4,000X5R | F |
| 215094-2M | ||||
| 215005-2M | 2.0mm2 AWG 14 |
3.1 | 4,000X4R | M |
| 215006-2M | 2mm2 AWG 14 |
3.1 | 4,000X5R | F |
