MOTION SENSOR of SMD Type

Capable of detecting very small motion in X, Y and Z axis.

This sensor has been developed after a lengthy development time by our enthusiastic R & D team. It's construction, ball contact method, is very simple and efficient for quickly detecting very small three axis motion. It is easy to use requiring only two wires. The output is analog triggered by chattering.

Main Features:

	Instant three axis motion sensing.
	Very low power consumption both in on and standby modes.
	Very small space requirements.
	Reflow soldering permitted.
	Long life expectancy.
	Analog output triggered by chattering.
	Two wires for output.

Applications:

	Automotive intelligent key system.
	Burglar alarm for all kinds of vehicles.
	Tracking freight deliveries.
	Security systems for confidential documents.
	ID tags for factory production lines, personnel ID, commodities and materials.
	Systems designed to locate lost animals, children and elderly persons etc.

Specifications:

Dimensions W X D X H	2.0 X 2.0 X 1.2 mm
Sensitivity	more than 1g
Contact resistance	less than 100 ohm
Contact current	1 ~ 100 渙
Life expectancy - Mechanical - Electrical	Operations more than 1000 K more than100 K
Operating Temp. Range	-25 to +70 deg C No frost or freezing

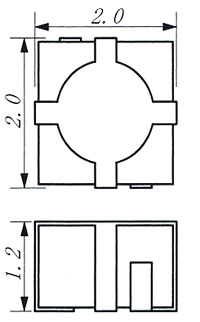

Dimensions in mm

Note: Except for dimensions, the CMN200 is equivalent to our MN530-02S model.

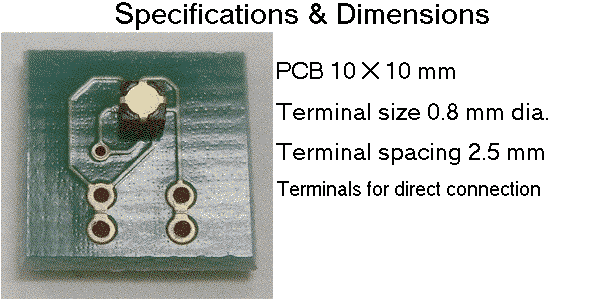

Trial Kit Model # CMN200-K

Trial kit for easily evaluating our newly developed SMD type motion sensor, #CMN200. Facilities are provided for convenient connection of input and output so that it can be quickly connected to the driving circuit.

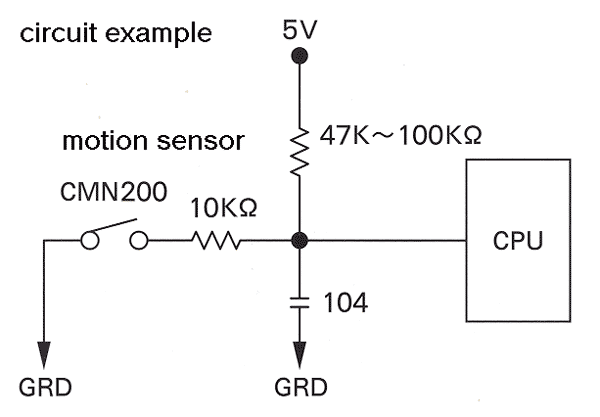

NOTE: ON/OFF is triggered by "chattering", but output current is dampened with a chattering cancellation circuit.
