Light Dependent Resistors (Photocell) (Coating type)

Variation: 54C, 76C, 1085C, 20C There are various kinds of products which can be used for your own applications, such as heat-proof type, economical type and so forth.

Features:

bulletHigh Reliability
bulletLight weight

Applications:

bulletCamera (electronic shutter)
bulletStrobe (colour temperature reading)
bulletClock
bulletSwitch for lighting
bulletOptical switch



Specification: Ta=25C
Series Type Light Resistance

10 lx (kOhm)

2856K

Dark Resistance *1

Min (Mohm)

Y10/1

(Typ.)

Maximum rating Picture Number
Power Dissapation

25C (mW)

Impressed voltage*2

DC (V)

Operating Temp.

(C)

Storage Temp.

(C)

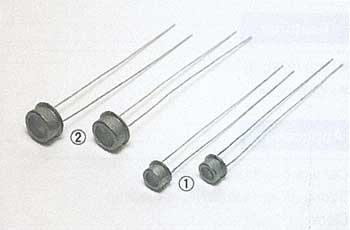

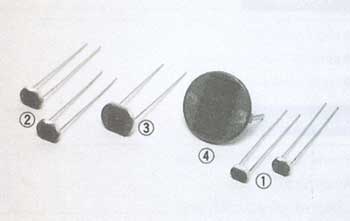

MKY series MKY-54C348 3~20 0.5 0.8 30 150 -20~+60 -30~+70 1
MKY-54C48L 6~18 0.5 0.8 30 150
MKY-54C459M 12~36 1 0.9 30 150
MKY-54C46 10~20 0.2 0.6 30 150
MPY series MKY-54C69 50~100 20 0.9 60 200 -20~+60 -30~+70 1
MKY-54C79 100~200 20 0.9 60 200
MKY-54C569 20~100 20 0.9 60 200
MKY-54C679 50~200 20 0.9 60 200
MKY-54C679L 50~140 20 0.9 60 200
MKY-76C59 20~50 20 0.9 100 200 -20~+60 -30~+70 2
MKY-76C569 20~100 20 0.9 100 200
MKY-20C48 10~20 1 0.8 500 1000 -20~+60 -30~+70 4
MKY-20C59 20~50 2 0.9 500 1000
MPY series

(heat-proof)

MKY-54C59X 20~50 20 0.9 60 200 -20~+70 -30~+80 1
MKY-54C69X 50~100 20 0.9 60 200
MKY-54C79X 100~200 20 0.9 60 200
MKY-54C348X 3~20 0.5 0.8 50 150
MKY-76C348X 3~20 0.5 0.8 80 150 -20~+70 -30~+80 2
MKY-76C59X 20~50 20 0.9 100 200
MKY-76C69X 50~100 20 0.9 100 200
MKY-1085C28X 2~5 1 0.8 300 200 -20~+70 -30~+80 3
MKY-1085C39X 5~10 2 0.9 300 200
MKY-1085C49X 10~20 3 0.9 300 200

*1 Dark Resistance: Measured for 10 seconds after blocking 100lx light.

*2 Impressed Voltage: Measured in darkness, 0lx.

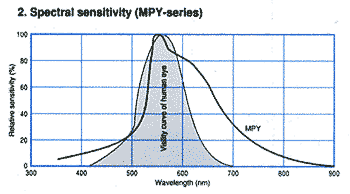

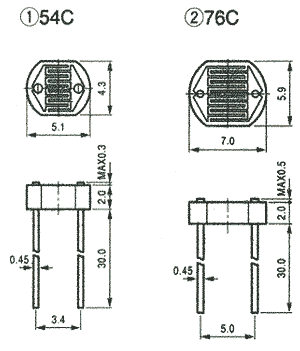

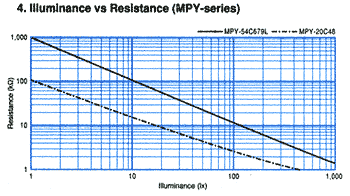

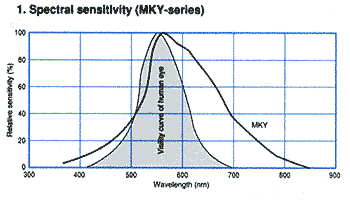

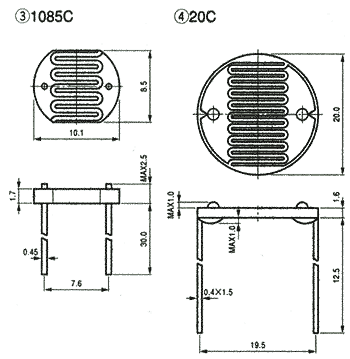

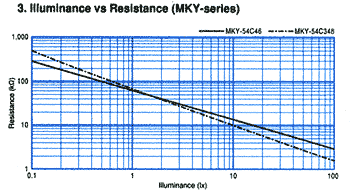

Shape and Dimension (unit: mm) Characteristic Graphs (Ta = 25C)





LDR Photocell (Hermetically sealed type)

Variation: 5H, 7H It is the hermetically sealed type light dependent resistor (photoconductive cell) which has similar sensitive wavelength to the visible spectrum.

Features:

bulletHigh Reliability
bulletHeat Proof Construction
bulletHigh Power

Applications:

bulletFlame monitor (for boiler)
bulletAnalyzers
bulletObservation equipment



Specification: Ta = 25C
Series Type Light Resistance

10 lx (kOhm)

2856K

Dark Resistance *1

Min (Mohm)

Y10/1

(Typ.)

Maximum rating Picture Number
Power Dissapation

25C (mW)

Impressed voltage*2

DC (V)

Operating Temp.

(C)

Storage Temp.

(C)

MKY series MKY-5H27 2~5 0.1 0.7 40 100 -20~+60 -30~+70 1
MKY-7H26 2~5 0.1 0.8 50 150 2
MKY-7H38 5~10 0.5 0.8 50 150
MKY-7H49 10~20 1 0.9 60 150
MPY series

(Heat Proof)

MKY-5H37 5~10 0.5 0.7 60 150 -20~+70 -30~+80 1
MKY-5H38 5~10 0.5 0.8 60 150
MKY-5H49 10~20 1 0.9 60 150
MKY-5H69 50~100 20 0.9 70 200
MKY-7H59 20~50 20 0.9 120 200 2
MKY-7H69 50~100 30 0.9 120 200

*1 Dark Resistance: Measured for 10 seconds after blocking 100lx light.

*2 Impressed Voltage: Measured in darkness, 0lx.

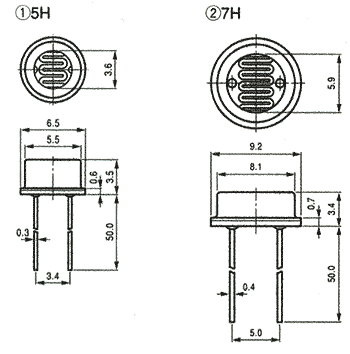

Shape and Dimension (Unit: mm)
